DC POWERED IT & OT System

AGILE-CORE™

Powering Edge Connectivity for IT and OT Networks

AGILE-CORE™ Distributed Edge Architecture Delivers More Power ​& Faster Data Speeds to the Edge with Safe DC Power

Sinclair Digital’s AGILE-CORE™ Distributed Edge Architecture is a high-performance, intelligent power distribution and control system engineered for modern IT, lighting and smart building applications.

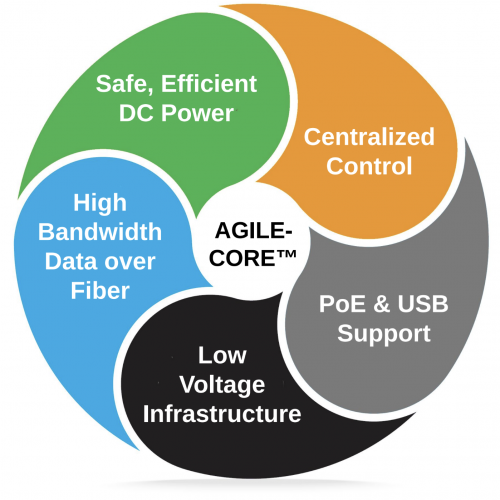

Screenshot 2025-05-21 at 10.20.13 AM


AGILE-CORE™ centralizes data and energy management by delivering safe, low-voltage DC power over copper and high-speed data via fiber from a HEADEND to distributed Edge IDFs using a hub-and-spoke architecture.
This architecture reduces both capital and operational costs by simplifying infrastructure, minimizing AC-DC conversion losses, and supporting a wide range of IT and OT devices including wireless access points, cameras, lighting, sensors, motorized shades, USB outlets, and building controls.

Powering Tomorrow’s Technology Today

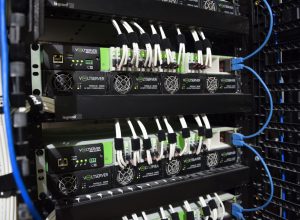

DSC_0682
Fault Managed Power (FMP)

Safe, high wattage digital power distribution technology designed to deliver DC power over long distances using standard structured cabling while automatically managing & limiting the risk of electrical faults.

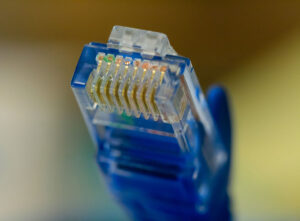

Power Over Ethernet (PoE)

Allows Ethernet cables to transmit both data and power to devices, eliminating the need for separate power cables.

AdobeStock_303324570_Preview
Extended Power Over Ethernet (X-PoE®)

Extends and enhances traditional Power over Ethernet capabilities by enabling dimming and control of LED fixtures without PoE nodes or external LED drivers to streamline deployment, eliminate failure points, and extend fixture longevity.

USBPREVIEW2
Low Voltage Direct Current (LVDC)

Electricity is transmitted using direct current at relatively low voltage, typically below 60V and treated as class 2. LVDC offers increased efficiency and safety.

Ecosystem Intelligence

AGILE-CORE™ leverages FMP, PoE, X-PoE® and LVDC to create a building infrastructure system that offers a safe, efficient, and scalable backbone with zero standby losses, simplified wiring, and accelerated installation. This exceptional system allows for information technology systems, operational technology systems, or both IT and OT delivering a next-generation digital building system.

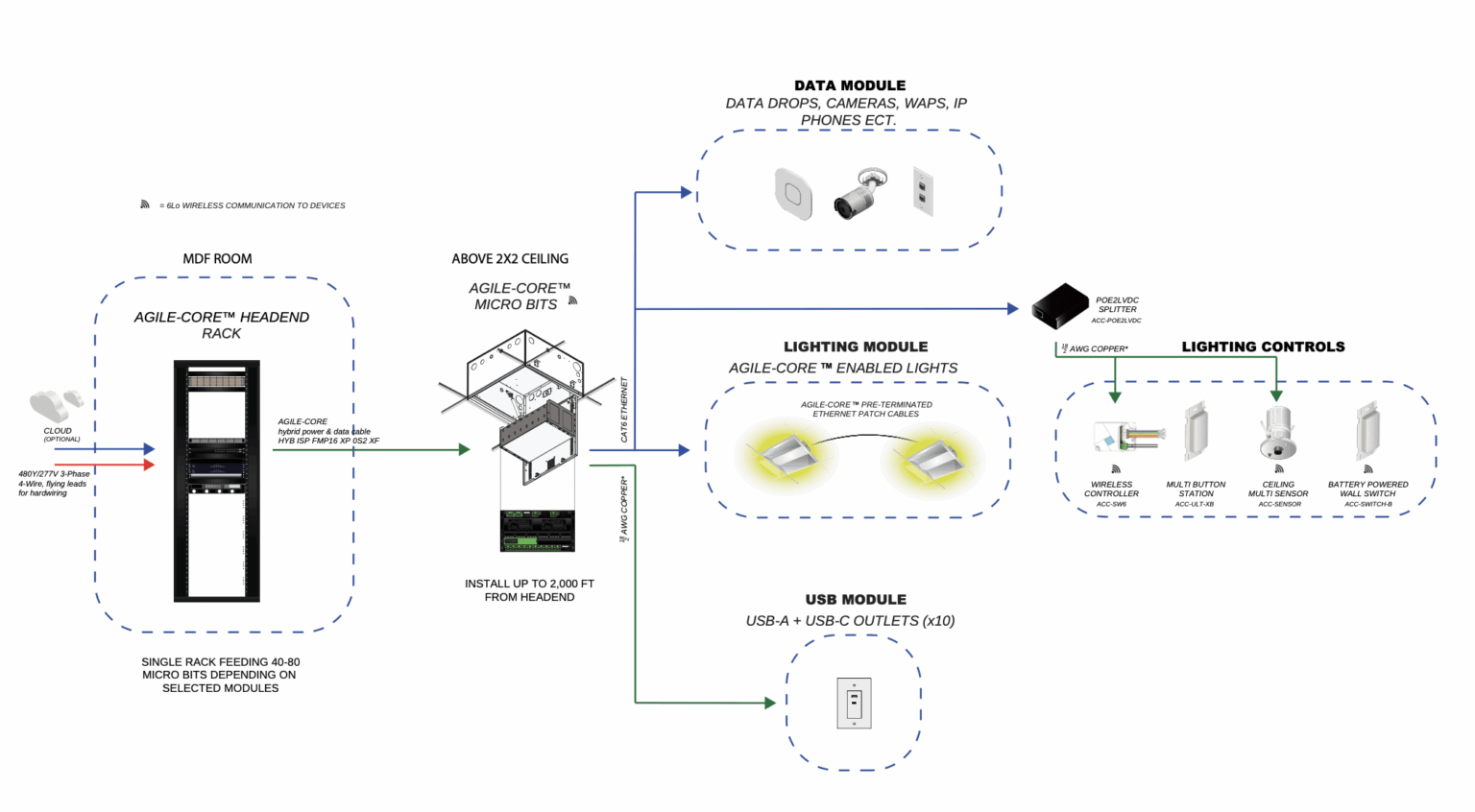

At the core of the system is the HEADEND, which may reside in a main electrical room or MDF, and serves as the central conversion and distribution point for AC or DC input power. It delivers power and data to remote BITS Edge IDFs using Fault Managed Power (FMP) over thin-gauge copper wiring and data over single mode fiber.

The HEADEND delivers power to remote BITS Edge IDFs using Fault Managed Power (FMP) over thin-gauge copper wiring. This fault-managed system instantly disconnects power in the event of a fault—such as accidental contact—ensuring high safety standards and reducing the risk of fire or damage. Because of its safe classification, FMP can be installed without metal conduit and run alongside communication lines, enabling flexible routing and lowering installation complexity.

Power and data are combined in a hybrid copper-fiber backbone cable, capable of extending up to 2000 feet from the HEADEND to Edge locations.

Within the Edge IDFs, FMP is converted to low-voltage DC and seamlessly integrated with the PoE, LVDC and X-PoE® lighting.

Smart Features with Real Results

Screenshot 2025-05-19 at 2.31.04 PM

Saves Square Footage

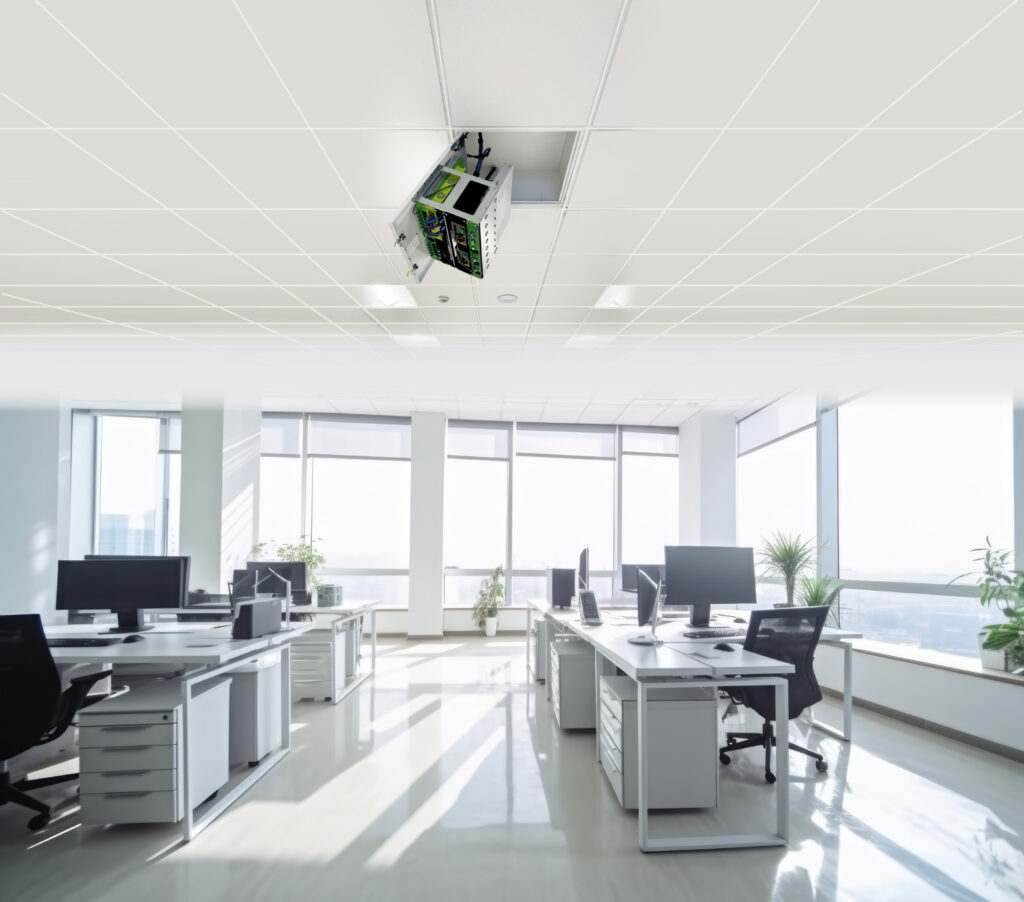

In Ceiling Edge IDFs Free Up Valuable Real Estate
Screenshot 2025-05-19 at 2.31.36 PM

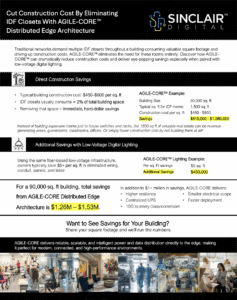

Eliminates IDF Rooms

Reducing the Cost to Build by $3+ per Sq Ft​
Safety

Safe DC Power

2KW+ Safe Low Voltage DC Power​ at the Edge​
ITOT

Converge IT & OT

One Backbone Lowers Construction Costs
Screenshot 2025-05-19 at 2.30.14 PM

Scalable

Faster and Less Expensive to Add or Move Equipment​​
Screenshot 2025-05-19 at 2.31.45 PM

Ultra Fast

60GB Data Speed Network Connectivity
ConnectedDevices

Low Cost Labor

No Specialized Labor Required
EnergyEfficiency

Energy Savings

Up to 30% – with DC Power
LessCopperMetal

Less Material

80% Less Copper & 100% Less Conduit

Explore AGILE-CORE™ Products

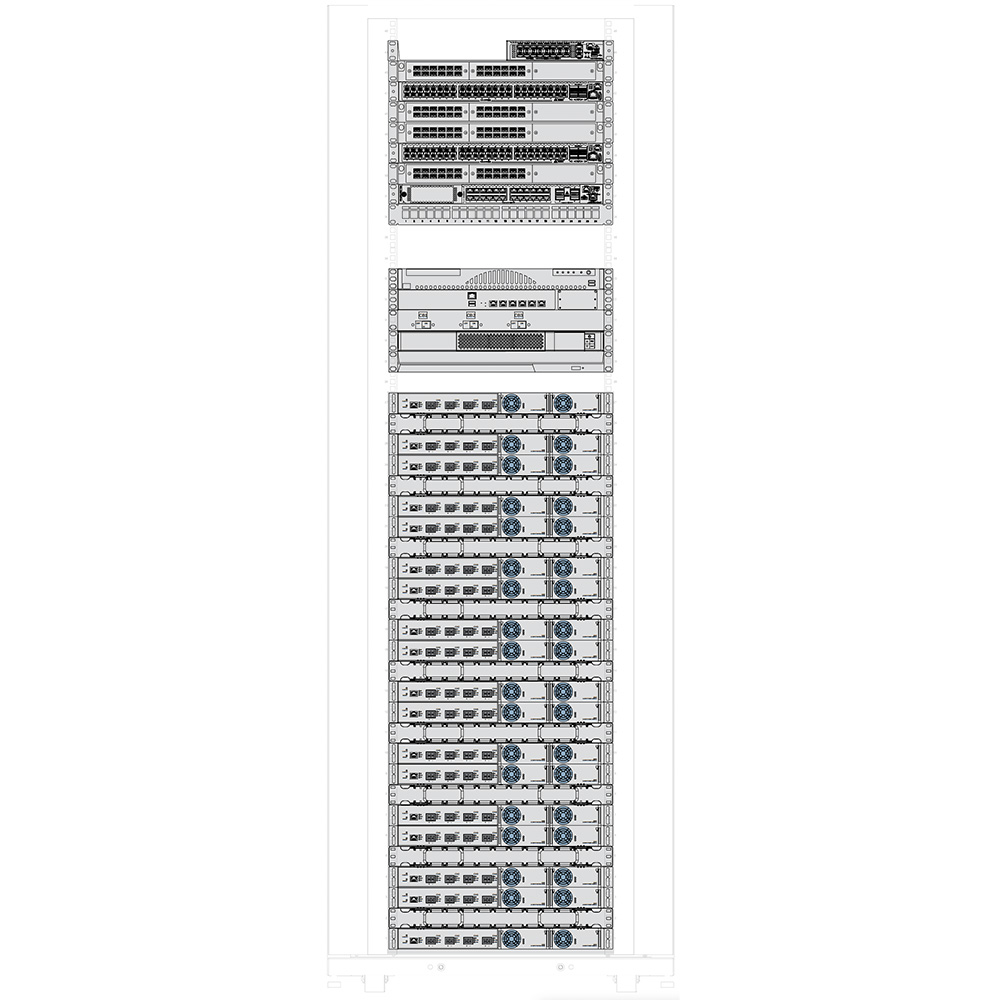

HEADEND

Provides safe power and robust amounts of data to remote BITS™ Edge IDFs while providing a central point of control and command containing all necessary servers, firewall and a point of connection to the internet.

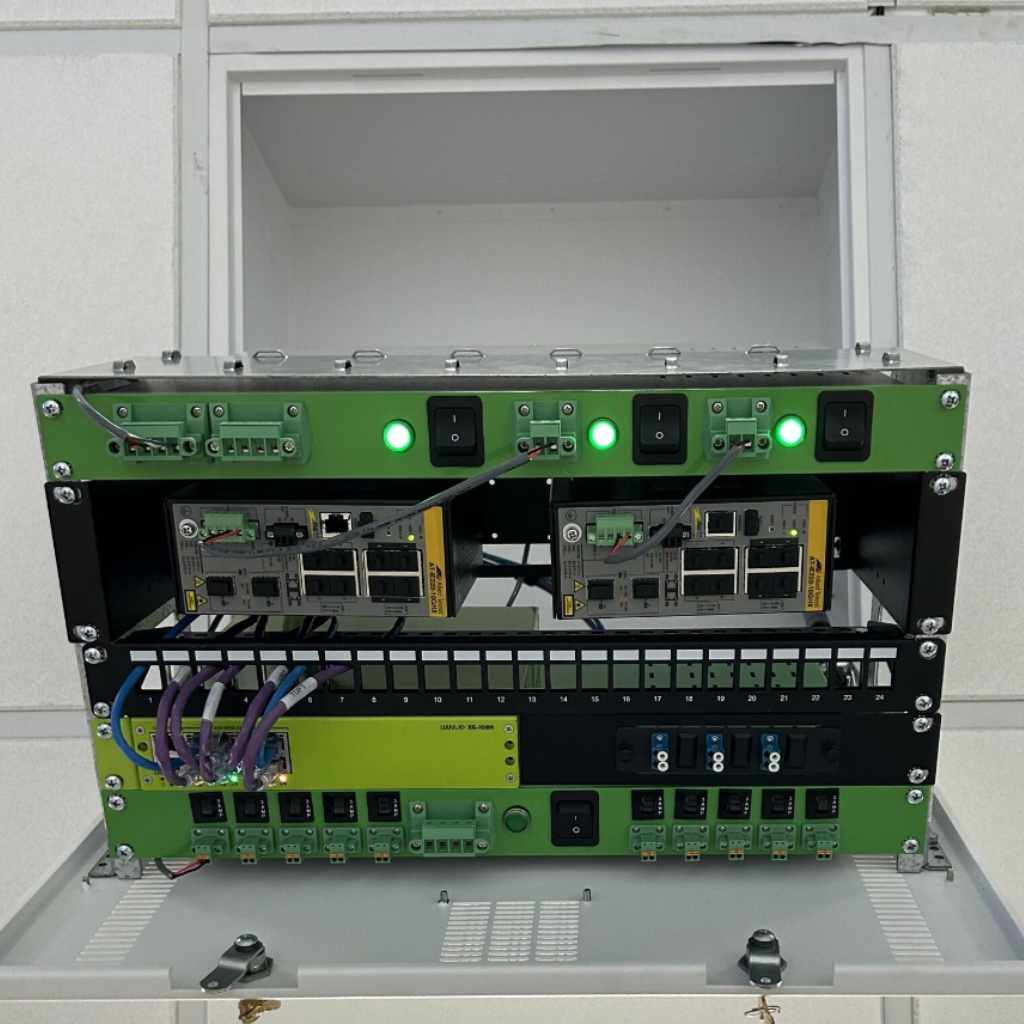

Edge IDFs

Distributes PoE, X-PoE® and LVDC to Cameras, Data Jacks, Wireless Access Points, DC-powered luminaries, motorized shades, lighting controls, USB outlets and more.

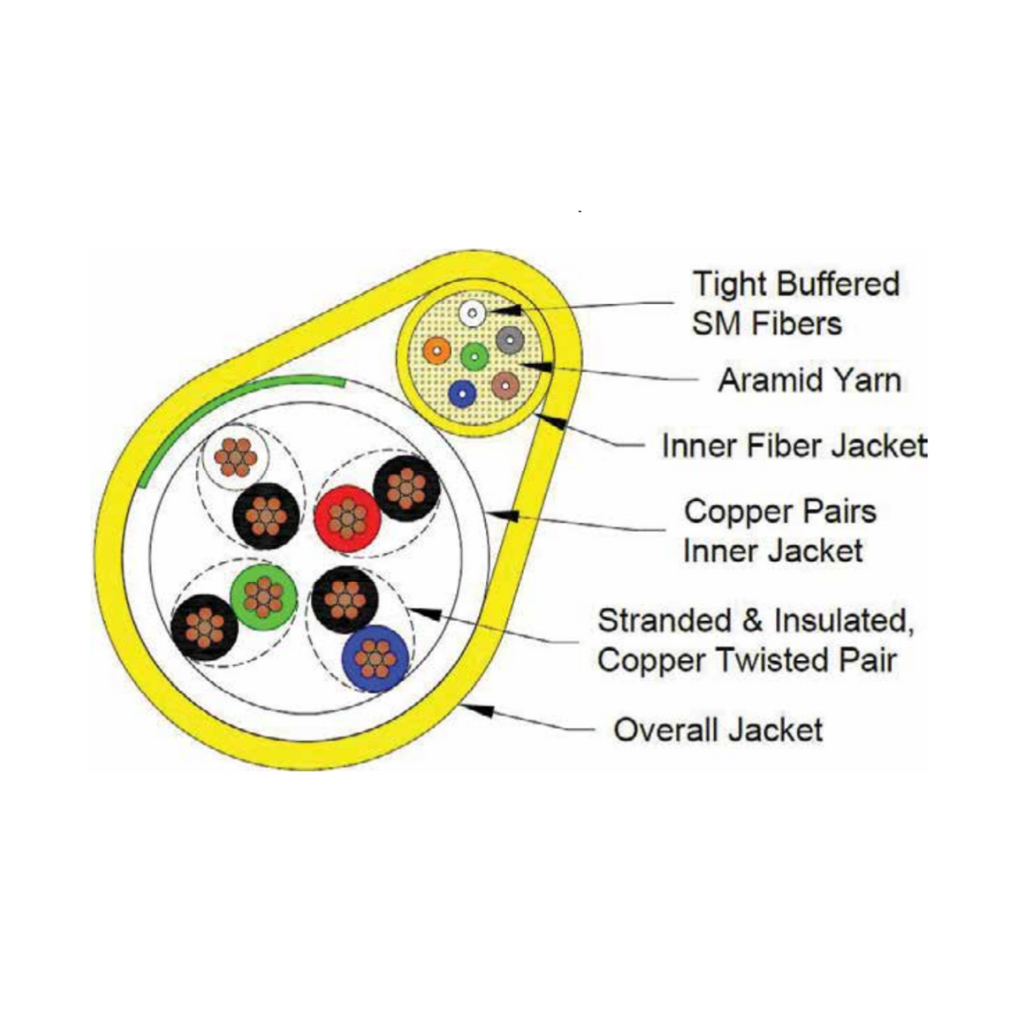

Hybrid Cable

Safely merges electrical power over copper and data high-speed transmission via fiber within a single cable providing an efficient and streamlined method for delivering both power and data signals to BITS™ Edge IDFs.

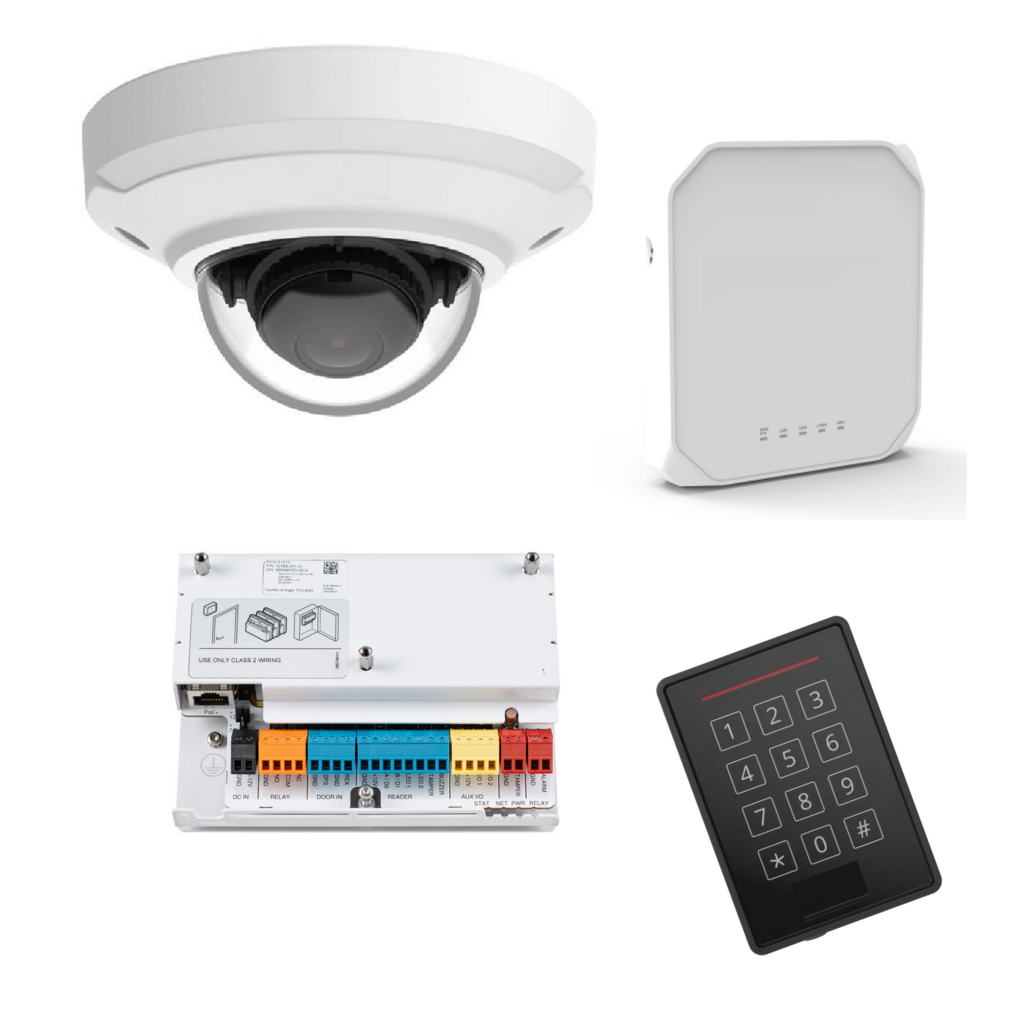

IT & OT End Points

Any device that connects to the network and serves as a point of communication.

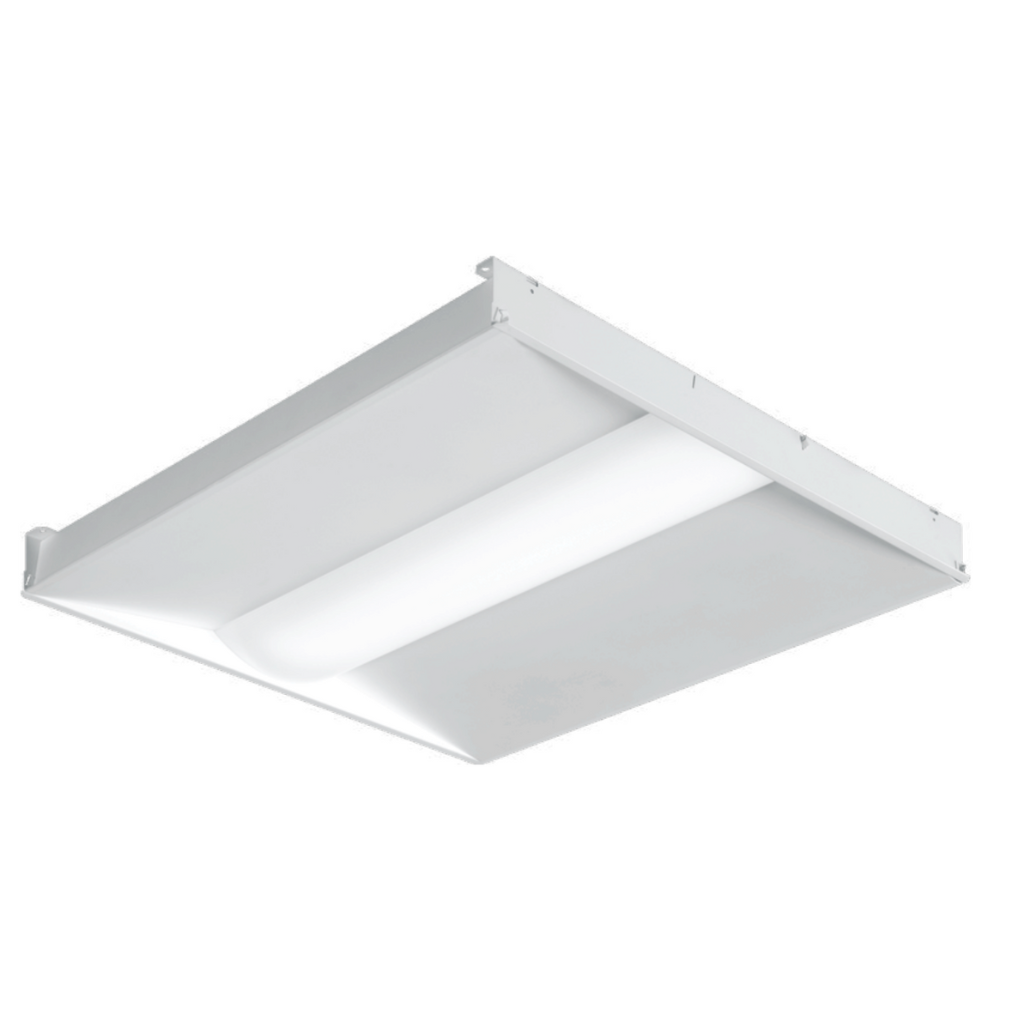

Luminaires

Low voltage direct current powered driver-less LED luminaires with static CCT or tunable white options.

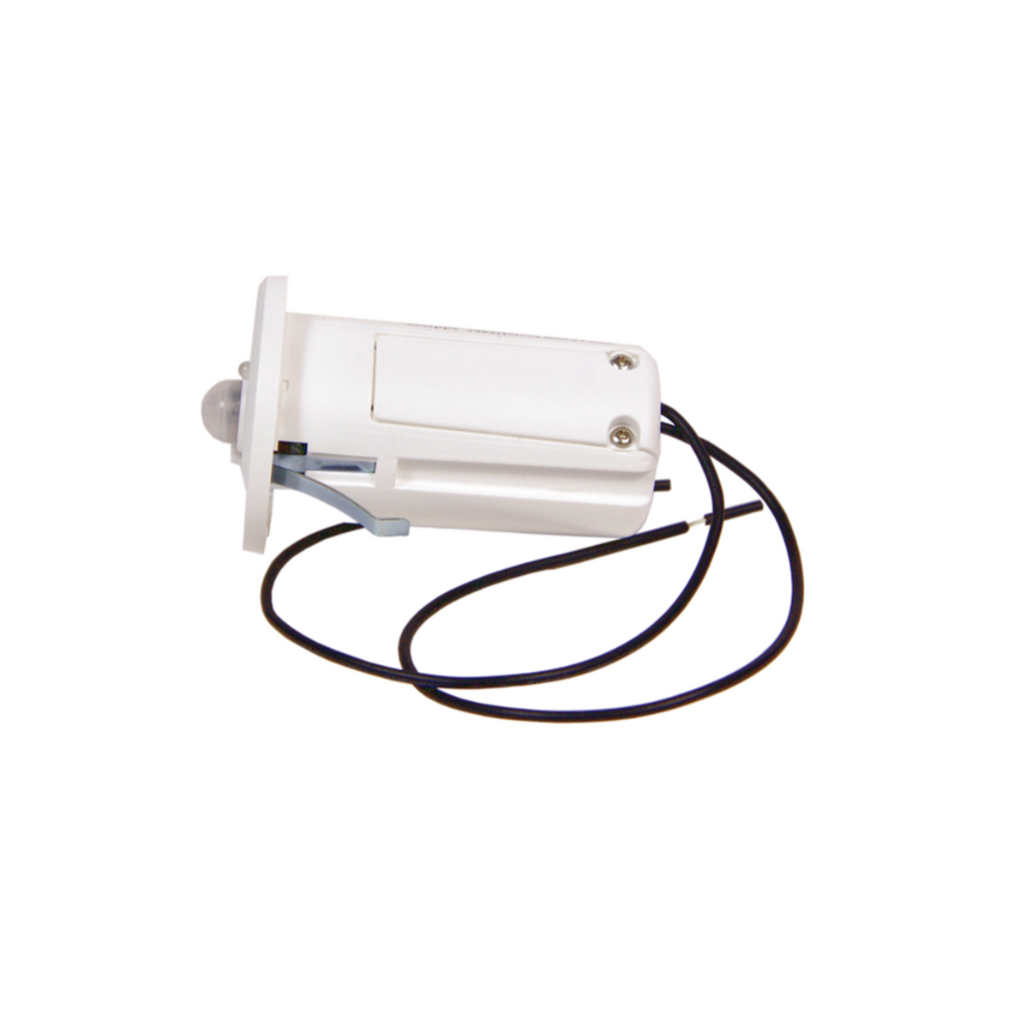

Lighting Controls

Sensors, Wall Switches and other accessories used to deliver T24, IECC and ASHRAE code compliance and more.

Connected Through Collaboration

At Sinclair Digital, we collaborate with world-class embedded technology partners who set the standard in innovation, quality, and performance. These partnerships allow us to deliver cutting-edge solutions tailored to meet the evolving needs of our customers.
From advanced engineering capabilities to scalable manufacturing and exceptional product reliability, our embedded partners are trusted leaders in their fields—ensuring that every solution we offer is backed by best-in-class technology and proven expertise.

Empowering Evolving Markets

Interested in AGILE-CORE™ contact us to schedule a demo

Please use the form below to email us for more information on Sinclair Digital Services, Inc.
