BITS™ Edge IDF

Distributes PoE, X-PoE® and LVDC to Cameras, Data Jacks, Wireless Access Points, DC-powered luminaries, motorized shades, lighting controls, USB outlets and more.

The Building Infrastructure Termination System (BITS™) Edge IDF uses a single unified power and data infrastructure to provide modular options of data, lighting and controls, USB charging solutions, shade control, IoT and more. This flexible solution, extends power and control to the edge, substantially decreasing traditional cabling requirements, and creating a future proof infrastructure by providing a robust fiber and copper backbone with 10GB or more uplink connectivity. The suspended, wall mounted or in ceiling edge IDF significantly reduces the amount of square footage needed to support IT and OT networks. It requires less maintenance, shorter cable runs, and ease of system growth over the 50 year life of a commercial or industrial facility.

FEATURES

  • No local AC Power needed
  • Ultra quiet fanless operation allowing use in noise sensitive locations
  • NEC Class 2 (LPS) & 4 (FMPS) low voltage input power system

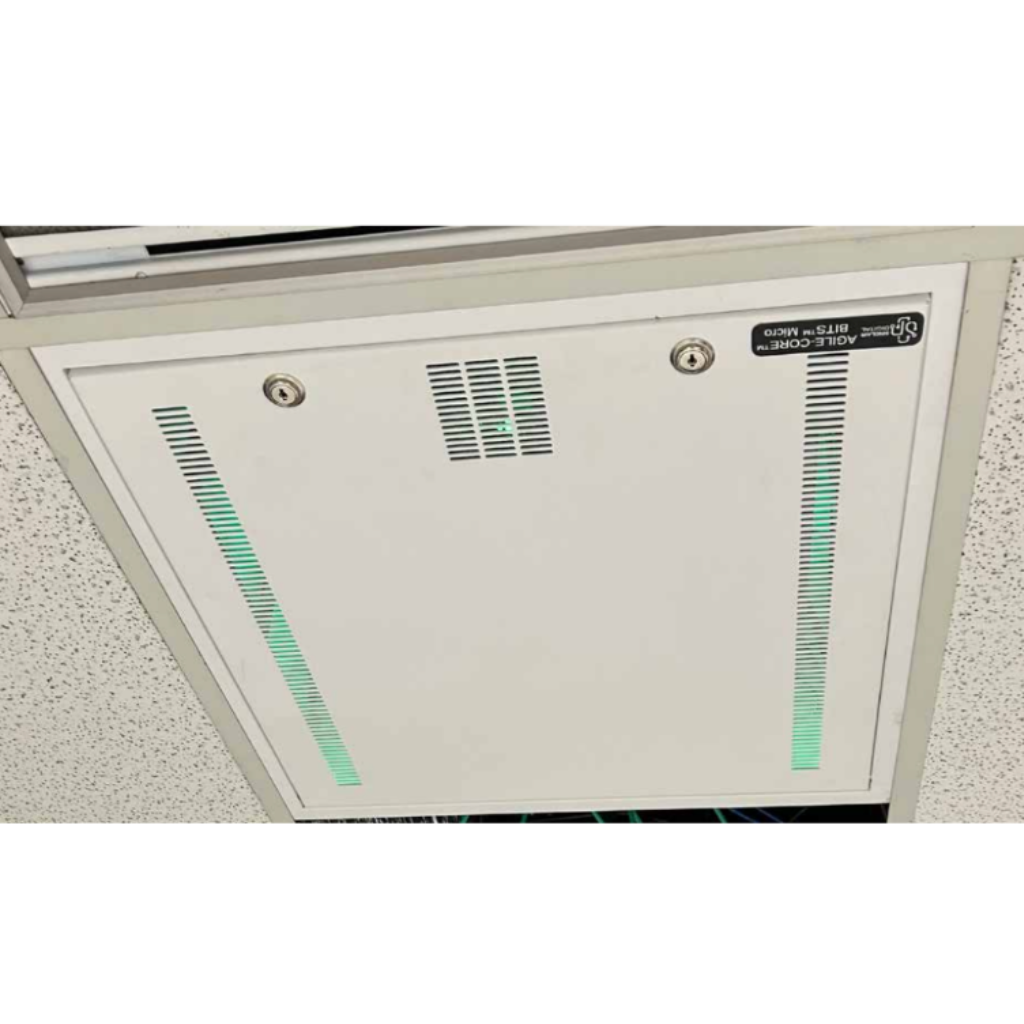

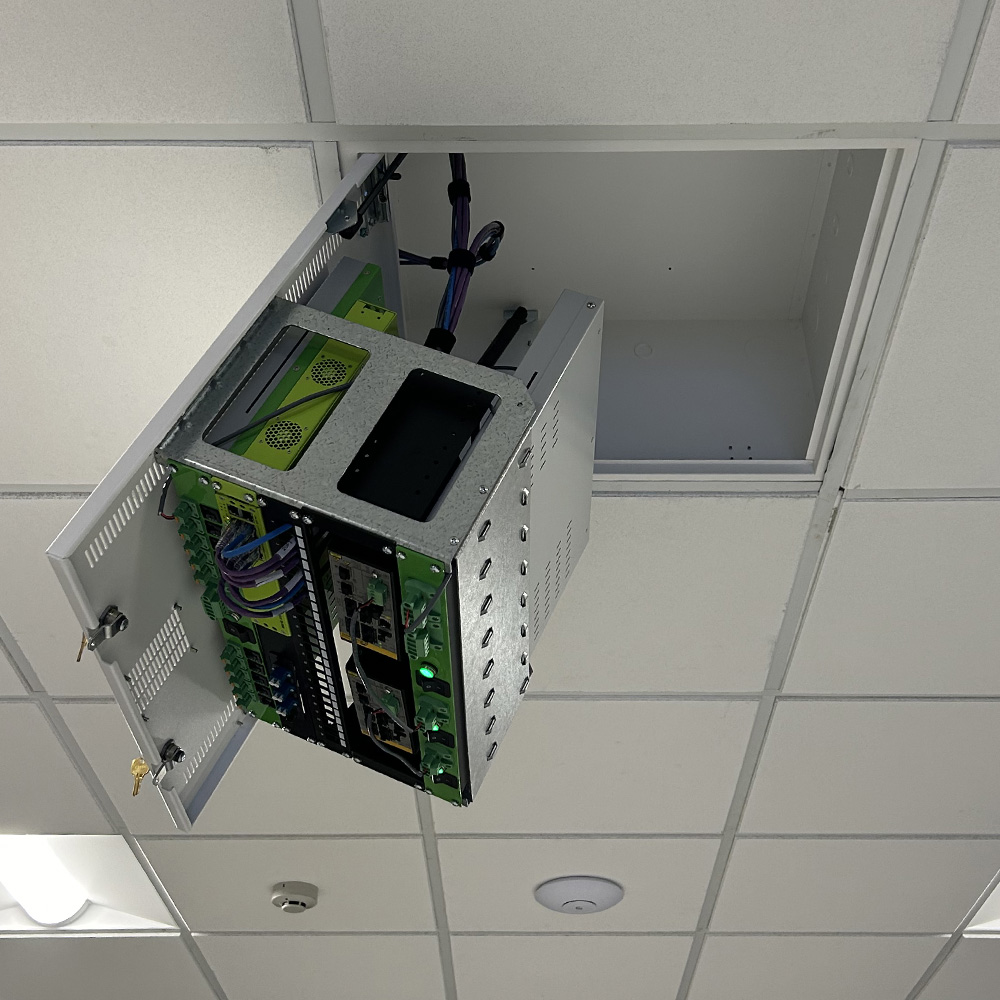

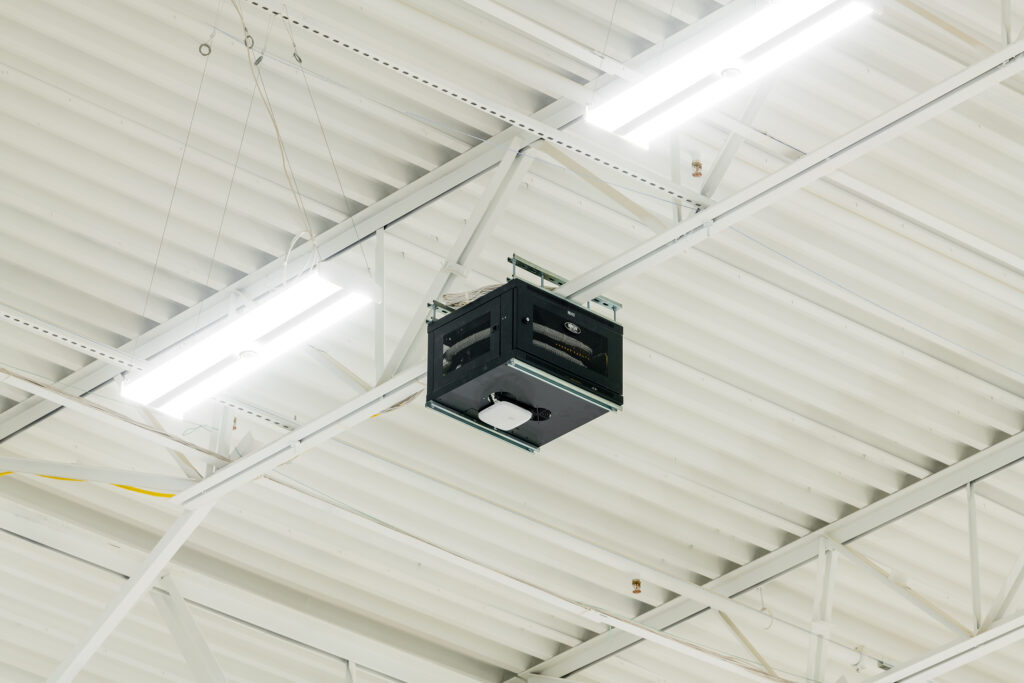

  • Designed for secure and convenient wall mounted or suspended installation in ceiling, wall mounted, or suspended applications.
  • BITS Edge IDFs eliminate the need for physical IDF rooms
  • 10GB or more uplink connectivity and power availability exceeding 2000W+ per BITS™ or BITS™ micro
  • Kitted for ease of assembly with UL and ETL listed components
  • Works with IT/OT End Points as well as normal and emergency lighting
