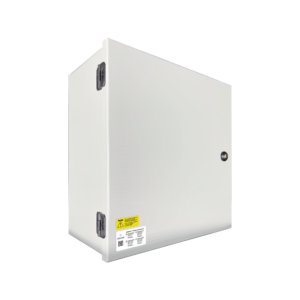

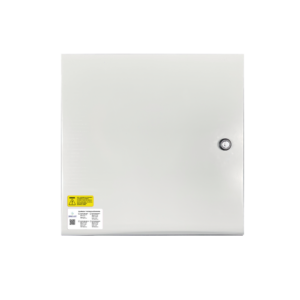

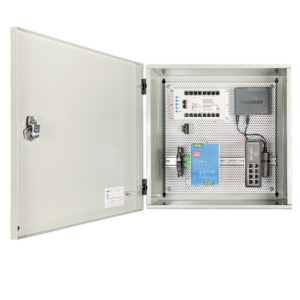

VistaMotion™ PoE Motorized Shade Hub
Intelligent power and control center supports up to 28 shades, converting AC to low-voltage DC and delivering both power and data over a single Ethernet cable for reliable, simplified, and easily integrated shade systems.
The VistaMotion™ PoE Motorized Shade Hub provides power and control for up to (28) motorized shades and draperies. It acts as the intelligence hub for the shade network along with powering PoE shade motors at a max distance of 328 ft (100 m). The Hub receives AC line voltage power and converts it to low voltage DC power and then distributes the energy to shade motors via CAT6 or CAT5E 22AWG ethernet cable. Through the use of PoE, power and data are provided on a single cable to shade motors eliminating the need of duplicate infrastructure for power and data. If reliability, reduced maintenance and / or integration capabilities are important, this is the appropriate solution.
FEATURES
- Provides real time clock control and command of the motorized shade system
- Each hub supports multiple PoE motors, wall stations, sensors and more
- Multiple hubs can connect and scale via the 10/100 Ethernet network port
- API allows for deep integration with 3rd party systems
- Ultra quiet fanless operation allowing use in noise sensitive
locations - Kitted for ease of assembly with UL and ETL listed components*
- Knockouts provided in the top, bottom, right and left side
- Keylocking door latch included
